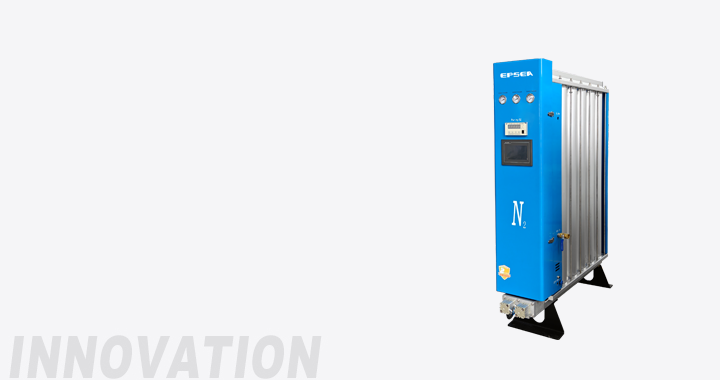

MODULAR NITROGEN GENERATOR

Technical Indicators

Nitrogen Flow Rate                                               0.5~40Nm³/H

Pressure Dew Point                                               -40~-70 °C

Working Temp.                                                      5~40 °C

Power                                                                     AC220V/110V-50HZ

Intake Pressure                                                      0.6～1.0MPa

Max Ambient Temp.                                              2~45 °C

Nitogen purity                                                       98~99.999%

Control Type(Standard)                                         PLC programmable control

Noise                                                                    ＜70dB

Control Type(High match)                                     HMI touch screen

Note: Other special standards can be customized;

more details please contact us.

Product Features

•High efficiency: fast purification, stable purity, some types of 99.999% purification only takes 15 minutes. Low energy consump-tion: the same model, energy saving 20% than twin towers. Long life: Molecular sieve

blizzard fill, patented air flow distributor, purity and flow life is 2-3 years longer than the same model twin towers. 50m³/h, the purity of nitrogen is lessthan 99.99% , suitable for modular nitrogen generator.

•Compact structure: easy maintenance, and it is not belonging to the pressure vessel, which reduce the use cost. Intelligent control system: high degree of automation, one key start automatic operation support for 24H*365 days of continuous operation.
