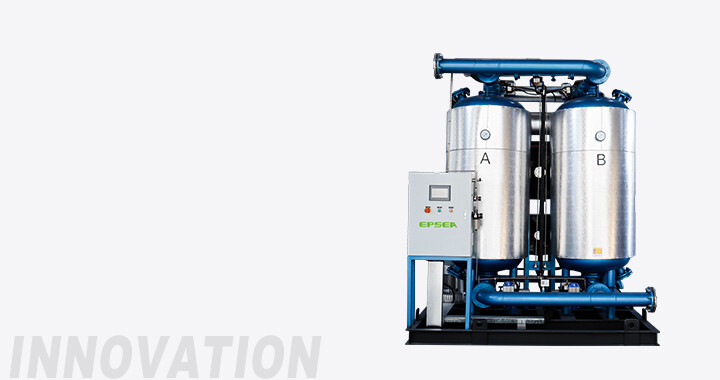

REGENERATIVE DESICCANT AIR DRYER

Technical Indicators

Intake Temperature                         ≤38℃

Regen Mode                                    Blower Heated Regeneration

Ambient Temp.                                2~40℃

Pressure Dew Point                         ≤-40℃

Working Pressure Range                 0.6~1.0MPa

Pressure Loss                                   ≤0.021MPa

Intake Oil                                         ≤0.1ppm

Power                                               AC/380V/50HZ

Standard Adsorption Cycle              8h

Regenerative Air Consumption        0

Note: Other special standards can be customized;

more details please contact us.

Product Features

•Deep dry, pressure dew point can reach -40℃ below. 8 hours long operation cycle, with dew point control function, maximum energy

saving. Ambient air is used for heating regeneration and blowing cooling to ensure zero gas consumption in the regeneration process.

•PLC automatic control, reliable operation. Alarm function and multiple interlocking protection are set in the control system.
